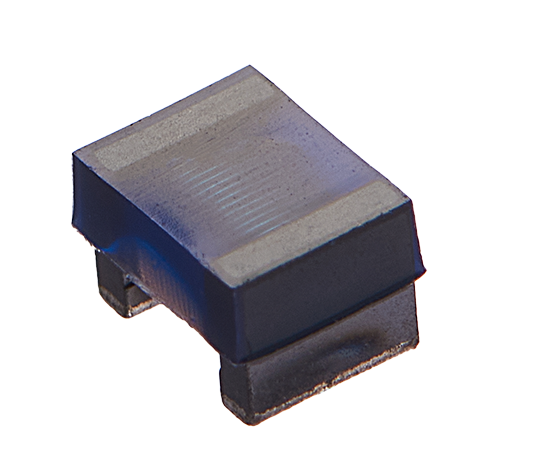

非屏蔽绕线电感

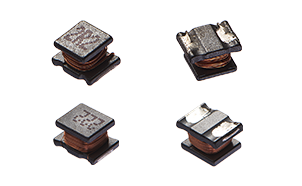

WI(一般用)
FEATURES
?Nizn material with a high Q at high frequency
?Different sizes and wide inductances available
?Operating temperature:-40°C to +125°C
APPLICATION
?Low power DC/DC converter
?Filter
?General circuit application
FEATURES
?Nizn material with a high Q at high frequency
?Different sizes and wide inductances available
?Operating temperature:-40°C to +125°C
APPLICATION
?Low power DC/DC converter
?Filter
?General circuit application
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(mA) | 直流电阻(Ω) | 文件下载 |
 | WI1608 | 1.8*1.2*1.2 | 0.047~10 | 180~1400 | 0.075~4.8 |  |
 | WI1210 | 3.2*2.5*2.0 | 1.0~560 | 48~750 | 0.1~28 | |
 | WI3225 | 3.2*2.5*2.0 | 1.0~270 | - | 90~9600 | |
 | WI4532 | 4.5*3.2*2.6 | 1.0~1000 | - | 0.08~27.9 | |
