FEATURES

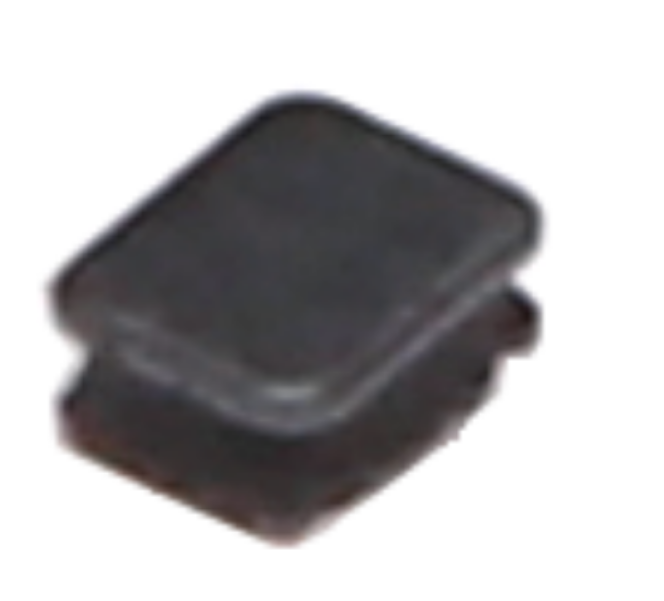

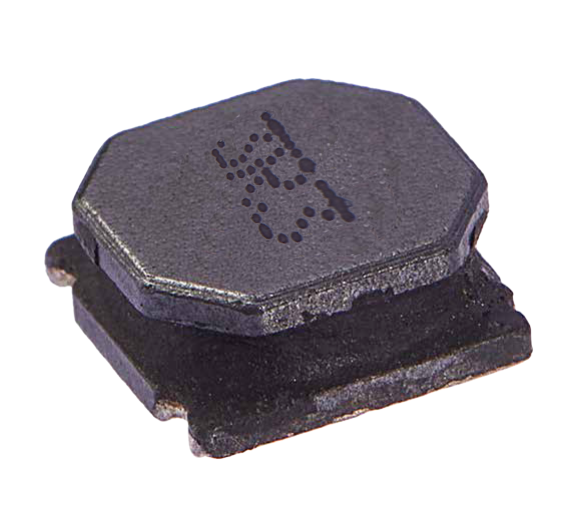

?Magnetic shield type wound inductor for power circuits using a ferrite magnetic material
?High magnetic shield construction and compatible with high-density mounting
?Larger current and lower Rdc were achieved by optimizing the ferrite core figure
?Operating temperature: –55°C to +125°C
?AEC-Q200 qualified
APPLICATION
?Car navigation,car stereo and car accessories only
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | NRSA201610 | 2.1*1.7*1.05 | 0.47~22.00 | 0.30~2.16 | 0.38~2.70 | 41~1550 |  |
 | NRSA2520B | 2.5*2.0*1.25 | 0.24~47.00 | 0.29~3.50 | 0.30~4.05 | 28~2000 | |
 | NRSA3012B | 3.0*3.0*1.0 | 1.00~3.30 | 1.70~2.80 | 1.60~3.60 | 43~115 | |
 | NRSA3015 | 3.0*3.0*1.3 | 0.24~100.00 | 0.35~4.50 | 0.30~5.50 | 13~3400 | |
 | NRSA3015B | 3.0*3.0*1.3 | 0.47~6.80 | 1.70~3.70 | 1.30~4.30 | 22~172 | |
 | NRSA4014B | 4.0*4.0*1.35 | 1.00~4.70 | 1.50~2.20 | 1.20~2.80 | 45~108 | |
 | NRSA4018W | 4.0*4.0*1.65 | 100 | 0.42 | 0.46 | 1.9 | |
 | NRSA4018B | 4.0*4.0*1.8 | 1.00~22.00 | 0.75~3.50 | 0.80~4.50 | 32~450 | |
 | NRSA4030 | 4.0*4.0*3.0 | 0.68~47.00 | 0.72~4.60 | 0.95~6.80 | 10~445 | |
 | NRSA5040 | 4.95*4.95*（3.8~3.9） | 1.00~100.00 | 0.72~5.00 | 0.75~7.50 | 12~560 | |
 | NRSA5020 | 5.0*5.0*1.8 | 1.00~47.00 | 0.70~4.10 | 0.70~5.00 | 20~460 | |
 | NRSA6020 | 6.0*6.0*1.8 | 1.00~22.00 | 1.40~4.50 | 1.30~6.20 | 19~204 | |

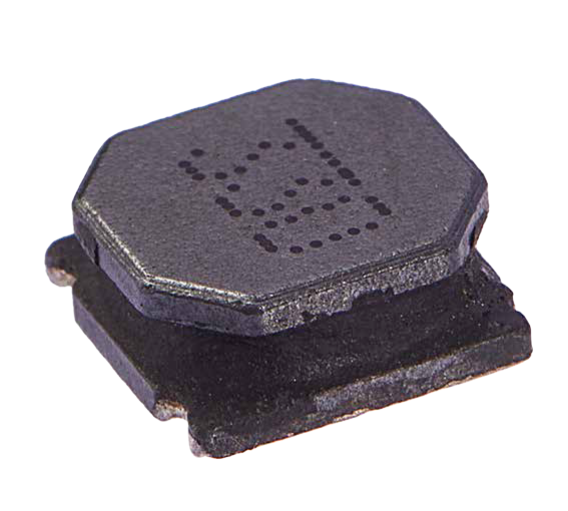

 | NRSA6028 | 6.0*6.0*2.6 | 1.00~100.00 | 0.80~5.75 | 0.72~5.20 | 10~605 | |
 | NRSA6045 | 6.0*6.0*4.2 | 0.47~220.00 | 0.60~8.60 | 0.88~17.00 | 6.8~900 | |
 | NRSA8040 | 8.0*8.0*（3.7~4.2） | 1.00~220.00 | 0.90~8.50 | 0.99~13.80 | 8.2~610 | |
