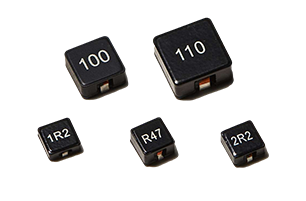

扁平线大电流电感
FHC(一般用)
FEATURES
?Low Rdc with ?at wire design
?Low cooper losses at high frequency
?Magnetic shielded structure
APPLICATION
?High current DC/DC converter
?LC ?lter
FEATURES
?Low Rdc with ?at wire design
?Low cooper losses at high frequency
?Magnetic shielded structure
APPLICATION
?High current DC/DC converter
?LC ?lter
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | FHC5040 | 4.7*6.7*4.0 | 0.22~5.6 | 4.5~20.0 | 4.6~25.0 | 1.25~28.5 |  |
| FHC7040 | 7.0*6.9*3.8 | 0.22~4.7 | 6.0~21.0 | 7.0~32.0 | 1.18~19.5 | |
| FHC7050 | 7.0*6.9*4.8 | 0.24~10.0 | 3.5~20.0 | 4.0~28.0 | 1.0~33.0 | |
| FHC7030 | 7.0*6.9*6.9 | 0.13~3.3 | 6.0~22.0 | 7.0~48.0 | 0.91~18.6 | |
| FHC1030 | 10.5*10.2*2.8 | 0.2~2.2 | 9.0~22.0 | 15.0~50.0 | 0.82~11.4 | |
| FHC1040 | 10.5*10.2*4.0 | 0.15~5.6 | 6.7~25.0 | 7.5~60.0 | 0.58~20.6 | |
| FHC1050 | 10.5*10.2*4.7 | 0.16~16.0 | 5.0~25.0 | 6.5~58.0 | 0.56~34.5 | |
| FHC1335 | 13.0*12.8*3.3 | 0.25~3.3 | 12.0~24.0 | 14.0~60.0 | 0.75~8.1 | |
| FHC1350 | 13.0*12.8*4.7 | 0.19~10.0 | 8.5~29.0 | 10.0~60.0 | 0.5~14.1 | |
| FHC1365 | 13.0*12.8*6.2 | 0.2~33.0 | 5.5~32.0 | 5.5~65.0 | 0.35~30.5 | |
| FHC1890 | 18.3*18.2*8.9 | 0.82~10.0 | 15.0~41.5 | 21.5~65.0 | 0.54~6.9 | |
